Dynamic Host Configuration Protocol (DHCP) is a crucial technology in the realm of networking, seamlessly enabling devices to join networks with minimal configuration effort. Imagine walking into a busy office where every device—laptops, smartphones, printers, and more—needs to connect to the network.

Without DHCP, each device would require manual configuration of network settings, a time-consuming and error-prone process. DHCP automates this task, dynamically assigning IP addresses and other essential network parameters to devices, ensuring they can communicate efficiently.

This article is your guide to understanding DHCP and its the intricacies as well as exploring its mechanisms, benefits, and impact on modern network management. Whether you’re a networking novice or an experienced professional, understanding DHCP is fundamental to grasping how contemporary networks operate smoothly and effectively.

Let’s crack on.

Understanding DHCP

Dynamic Host Configuration Protocol, or DHCP, is a network protocol that automatically assigns IP addresses and other network configuration settings to devices connected to a network. It simplifies the process of managing IP addresses, making it an essential tool for businesses of all sizes.

DHCP plays a vital role in business environments by providing several key benefits that enhance network management and efficiency. Here’s why DHCP is important for businesses:

• Automated IP Address Management: DHCP automatically assigns IP addresses to devices on a network. This automation reduces the administrative burden of manually configuring IP addresses, saving time and minimizing errors.

• Scalability: As businesses grow and add more devices to their networks, DHCP makes it easy to scale without the need for extensive reconfiguration. New devices can seamlessly join the network and receive the necessary configuration settings.

• Efficient Resource Allocation: DHCP ensures optimal use of IP address space by dynamically allocating addresses only when devices are connected. This helps prevent address conflicts and ensures that IP addresses are not wasted.

• Improved Network Stability: By managing IP address assignments centrally, DHCP reduces the likelihood of address conflicts, which can disrupt network communication. This leads to a more stable and reliable network environment.

• Simplified Network Configuration: DHCP can distribute additional network configuration parameters, such as DNS server addresses, gateway addresses, and subnet masks. This simplifies the setup and maintenance of network devices.

• Enhanced Security: DHCP can be configured with features such as IP address leasing and MAC address filtering, which can help manage network access and enhance security. Administrators can control which devices are allowed to connect to the network based on their hardware addresses.

• Centralized Management: DHCP provides a centralized way to manage and monitor IP address assignments. Network administrators can easily view and adjust settings from a single point, streamlining network management tasks.

• Support for Mobile Devices: In today’s business environment, employees often use a variety of mobile devices. DHCP supports these devices by providing them with the necessary network settings, allowing them to move seamlessly between different network segments.

• Simplified IP Address Management: DHCP eliminates the need for manual IP address assignment, reducing the workload for IT staff. This allows businesses to focus on more critical tasks, such as network security and performance optimization.

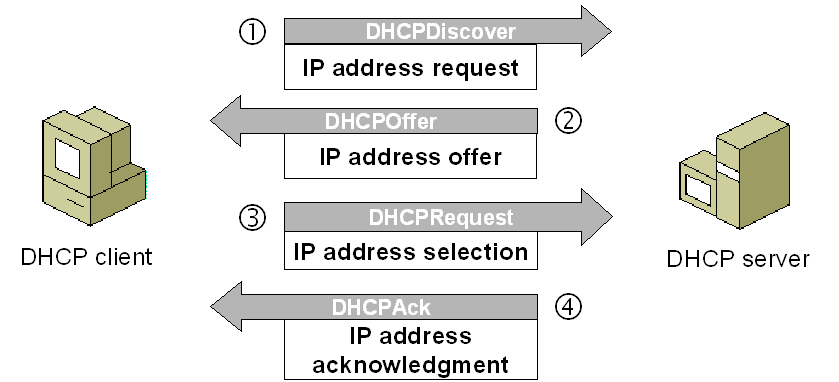

The DHCP Process

The Dynamic Host Configuration Protocol (DHCP) process involves several key steps that enable a device to obtain the necessary network configuration parameters automatically. Here’s a detailed breakdown of the DHCP process:

1. DHCP Discovery

When a device (client) connects to a network and needs an IP address, it initiates the DHCP process by broadcasting a DHCPDISCOVER message. This message is sent to the entire network to locate a DHCP server.

2. DHCP Offer

Upon receiving the DHCPDISCOVER message, one or more DHCP servers respond with a DHCPOFFER message. This message includes an available IP address and other configuration details such as the subnet mask, default gateway, and DNS servers. Each server reserves the offered IP address until the client accepts one of the offers.

3. DHCP Request

The client reviews the offers and selects the most appropriate one, typically the first one it receives. It then broadcasts a DHCPREQUEST message, indicating its acceptance of the offer from a specific DHCP server. This message also informs all other DHCP servers that the client has chosen a particular offer, allowing them to release their reserved IP addresses back to the pool.

4. DHCP Acknowledgment

The selected DHCP server responds with a DHCPACK message, which confirms the lease of the IP address and provides the client with the finalized network configuration parameters. The client can now configure its network interface with these settings and join the network.

5. Lease Renewal and Rebinding

IP addresses provided by DHCP servers come with a lease duration. Before the lease expires, the client must renew it to maintain its network connectivity. This is done through the following steps:

• Lease Renewal (T1 Timer): When half of the lease time elapses, the client sends a unicast DHCPREQUEST message directly to the DHCP server to renew the lease. If the server responds with a DHCPACK, the lease is extended, and the client continues using the IP address.
• Rebinding (T2 Timer): If the client does not receive a response to the lease renewal request, it continues using the IP address until 87.5% of the lease time has passed. At this point, the client broadcasts a DHCPREQUEST message to any available DHCP server. If any server responds with a DHCPACK, the client updates its lease information accordingly.

6. Lease Expiration

If the client fails to renew or rebind its lease before it expires, it must stop using the IP address. The client then reinitiates the DHCP process to obtain a new IP address.

This automated process ensures that devices can join networks quickly and efficiently, reducing the need for manual configuration and minimizing network management complexity.

DHCP Message Types

The Dynamic Host Configuration Protocol (DHCP) uses a variety of message types to facilitate the process of dynamically assigning IP addresses and other network configuration parameters to devices on a network, ensuring efficient and streamlined network management. Here are the key DHCP message types and their functions:

• DHCPDISCOVER: Initiated by the client to locate available DHCP servers. This broadcast message is sent by the client when it first connects to the network and needs an IP address, allowing it to discover DHCP servers on the network.

• DHCPOFFER: Sent by DHCP servers in response to a DHCPDISCOVER message. It includes an available IP address and other network configuration parameters, such as the subnet mask, default gateway, and DNS servers. Multiple DHCP servers may respond with offers, providing the client with several options to choose from.

• DHCPREQUEST: Sent by the client to request or confirm the offered IP address. This broadcast message indicates the client’s acceptance of an IP address from a specific DHCP server and can also be used to renew or rebind an IP address lease.

• DHCPACK: Sent by the DHCP server to acknowledge the DHCPREQUEST message. This message confirms that the client’s request for the IP address has been accepted, finalizing the lease and providing the client with the necessary configuration parameters.

• DHCPNAK: Sent by the DHCP server to reject a DHCPREQUEST message. This message indicates that the server cannot fulfill the client’s request for an IP address, often due to the address being invalid or the lease not being recognized.

• DHCPDECLINE: Sent by the client to inform the DHCP server that the offered IP address is already in use. This message is used by the client when it detects an IP address conflict, prompting the server to withdraw the offer and provide a different address.

• DHCPRELEASE: Sent by the client to release its IP address lease. This message notifies the DHCP server that the client no longer needs the assigned IP address, allowing the server to return the address to the pool of available addresses.

• DHCPINFORM: Sent by the client to request additional local configuration parameters. This message is used when the client already has an IP address (manually configured or obtained by other means) but needs additional configuration information from the DHCP server.

Implementing DHCP in Your Business Network

Implementing Dynamic Host Configuration Protocol (DHCP) in your business network is essential for streamlining network management and ensuring efficient connectivity. As we mentioned, DHCP simplifies the process of assigning IP addresses and other network configuration parameters to devices, reducing administrative overhead and minimizing configuration errors. Here are key steps to implement DHCP effectively:

1. Network Planning

Begin by assessing your network infrastructure and requirements. Determine the scope of your DHCP deployment, including the number of DHCP servers needed based on network size and redundancy requirements.

2. Choosing a DHCP Server

Next, you need to choose a suitable DHCP server. Many network devices, such as routers and switches, have built-in DHCP server functionality. Alternatively, you can use a dedicated DHCP server software running on a server or a cloud-based DHCP service.

3. Configuring DHCP Scope and Options

Once you have chosen a DHCP server, you need to configure the DHCP scope and options. The scope defines the range of IP addresses that the server can assign, while the options specify additional configuration settings, such as the default gateway, DNS servers, and subnet mask. Make sure you define an appropriate DHCP scope size based on your network requirements and configure DHCP options correctly to avoid conflicts with existing network settings

Example: Setting up a DHCP scope in Windows Server

1. Open the DHCP Manager console
2. Right-click on the DHCP server and select “New Scope”
3. Follow the wizard to define the scope name, IP address range, and other options
4. Activate the scope to start assigning IP addresses

4. Integrating DHCP with Existing Network Infrastructure

To ensure a smooth implementation, you need to integrate DHCP with your existing network infrastructure. This involves configuring your network devices to forward DHCP requests to the DHCP server and ensuring that the server can communicate with devices on different network segments.

Best practices for DHCP Implementation

Other things you need to do when implementing DHCP to ensure optimal performance and security include the following:

1. Test and Validate: Verify DHCP functionality across devices before full deployment.
2. Monitor and Maintain: Regularly monitor DHCP performance, manage leases, and perform maintenance tasks.
3. Document and Train: Document configurations, policies, and provide training for network staff.

Advanced DHCP Concepts

Advanced DHCP concepts go beyond basic IP address allocation and include more sophisticated configurations and features that enhance network management and security. Here are several advanced DHCP concepts:

1. DHCP Failover and Redundancy

To ensure high availability and minimize downtime, businesses can implement DHCP failover and redundancy. This involves configuring two or more DHCP servers to work together, providing a backup in case the primary server fails. When set up correctly, DHCP failover ensures that devices can still obtain IP addresses even if one server goes offline.

2. DHCP Relay Agents

In larger networks with multiple subnets, DHCP relay agents can be used to forward DHCP requests and responses between clients and servers located on different network segments. A DHCP relay agent, usually a router or a layer 3 switch, listens for DHCP broadcasts on one interface and forwards them to the DHCP server on another interface. This allows for centralized DHCP management while ensuring that devices on all subnets can obtain IP addresses.

3. DHCP Snooping

DHCP snooping is a security feature that can be enabled on network switches to prevent rogue DHCP servers and unauthorized IP address assignment. When DHCP snooping is enabled, the switch creates a binding table that maps IP addresses to MAC addresses and the switch port. The switch then filters DHCP messages, allowing only trusted DHCP servers to assign IP addresses and preventing unauthorized devices from obtaining an IP address.

Note: While these advanced concepts are important for network administrators, beginners may find them more challenging. Focus on understanding the basic principles of DHCP before diving into these more complex topics.

Troubleshooting DHCP Issues

Despite its many benefits, DHCP can sometimes experience issues that disrupt network connectivity. That’s why troubleshooting DHCP issues is crucial for maintaining network connectivity and ensuring devices can properly obtain IP addresses and network configurations.

Here are some common DHCP problems and how to solve them:

• DHCP server not responding: Ensure that the DHCP server is running and accessible from the client devices.
• IP address conflicts: Configure the DHCP scope to avoid overlapping with statically assigned IP addresses.
• Incorrect DHCP options: Verify that the DHCP options are configured correctly and match your network requirements.
• Address pool exhaustion: Manually release and renew IP addresses on affected devices to attempt resolving conflicts.

Tools for Monitoring and Diagnosing DHCP

To troubleshoot DHCP issues effectively, you can use various tools, such as:

• DHCP server logs: Monitor the DHCP server logs for error messages and warnings. Look for clues related to IP address conflicts, scope exhaustion, or other issues.
• Network packet analyzers: Use tools like Wireshark to capture and analyze DHCP traffic between the server and clients. This can help identify communication problems or misconfigurations.
• DHCP client troubleshooting commands: Use commands like ipconfig (Windows) or dhclient (Linux) to diagnose DHCP issues on client devices. These commands can help release and renew IP addresses, display current DHCP settings, and more.
• Open source DHCP monitoring tools: Tools like DHCP Probe or DHCPing (part of the dhcpdump package) are open-source utilities that can be used to monitor DHCP server responses and diagnose DHCP-related problems.

DHCP Security Considerations

Ensuring DHCP (Dynamic Host Configuration Protocol) security is essential to prevent unauthorized access, network disruptions, and potential attacks. Let’s explore some key security considerations for DHCP implementation:

Potential Security Risks Associated with DHCP

While DHCP simplifies IP address management, it can also introduce security risks if not implemented properly. Some potential risks include:

• Rogue DHCP servers: Unauthorized DHCP servers can disrupt network connectivity and potentially distribute malicious configuration settings.
• DHCP starvation attacks: Attackers can exhaust the available IP addresses in the DHCP scope, preventing legitimate devices from obtaining an IP address.
• DHCP spoofing: Attackers can impersonate a DHCP server and provide false configuration settings to clients, potentially directing them to malicious servers.

Measures to Secure Your DHCP Server and Network

To mitigate these risks, businesses should implement the following security measures:

• Enable DHCP snooping on network switches to prevent rogue DHCP servers
• Configure DHCP server authorization to ensure that only authorized servers can assign IP addresses
• Implement DHCP client filtering to prevent unauthorized devices from obtaining an IP address
• Regularly update and patch your DHCP server software to address known vulnerabilities

Conclusion

Dynamic Host Configuration Protocol (DHCP) stands as a cornerstone of modern networking, revolutionizing how devices connect and communicate on networks worldwide. By automating IP address assignment and simplifying network configuration, DHCP not only streamlines administration but also enhances efficiency and scalability across diverse environments. Its role in ensuring seamless connectivity for an array of devices—from smartphones to servers—underscores its importance in today’s interconnected world.

As technologies evolve and networks grow more complex, DHCP continues to evolve with features like DHCPv6 and advanced security measures, reinforcing its status as a foundational technology that empowers businesses to focus on innovation and growth while maintaining robust and reliable network operations.
